范围选择器

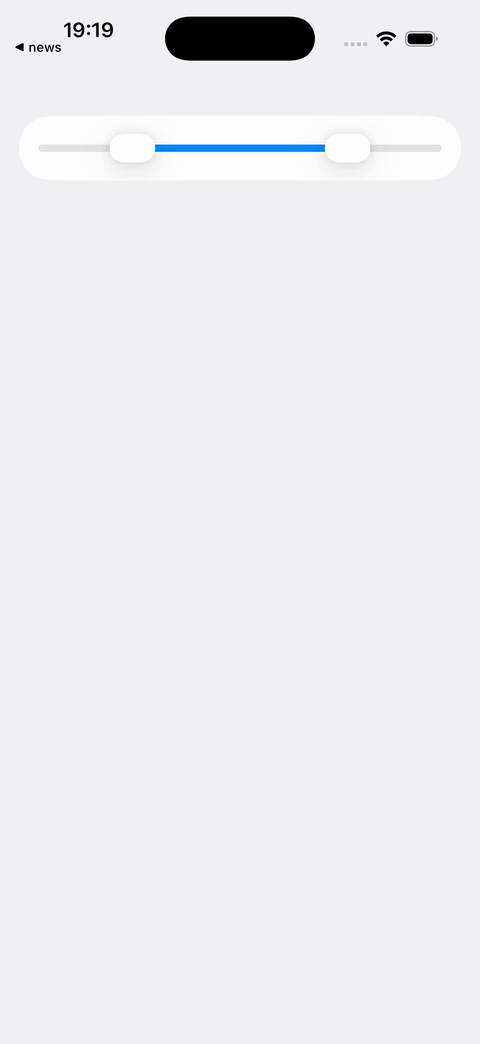

效果

代码

import SwiftUI

struct DualSlider: View {
    @Binding var lowerValue: Double
    @Binding var upperValue: Double
    var range: ClosedRange<Double>
    var step: Double
    var onEditingChanged: (Bool) -> Void = { _ in }

    private let trackWidth: CGFloat = 338
    private let handleWidth: CGFloat = 38

    private var lowerPosition: CGFloat {
        CGFloat(
            (lowerValue - range.lowerBound)
                / (range.upperBound - range.lowerBound)
        ) * (trackWidth - handleWidth)
    }

    private var upperPosition: CGFloat {
        CGFloat(
            (upperValue - range.lowerBound)
                / (range.upperBound - range.lowerBound)
        ) * (trackWidth - handleWidth)
    }

    var body: some View {
        ZStack(alignment: .leading) {
            RoundedRectangle(cornerRadius: 100)
                .fill(Color(uiColor: UIColor.systemFill))
                .frame(width: trackWidth, height: 6)

            RoundedRectangle(cornerRadius: 100)
                .fill(Color.blue)
                .frame(
                    width: abs(upperPosition - lowerPosition) + handleWidth,
                    height: 6
                )
                .offset(x: min(lowerPosition, upperPosition))

            RoundedRectangle(cornerRadius: 100)
                .fill(.white)
                .frame(width: handleWidth, height: 24)
                .shadow(color: .black.opacity(0.12), radius: 4, y: 0.5)
                .shadow(color: .black.opacity(0.12), radius: 13, y: 6)
                .offset(x: lowerPosition)
                .gesture(
                    DragGesture()
                        .onChanged { value in
                            onEditingChanged(true)
                            let percent = min(
                                max(
                                    0,
                                    value.location.x
                                        / (trackWidth - handleWidth)
                                ),
                                1
                            )
                            let newValue =
                                range.lowerBound + percent
                                * (range.upperBound - range.lowerBound)
                            let steppedValue =
                                (newValue / step).rounded() * step
                            let minAllowedValue = range.lowerBound
                            let maxAllowedValue = upperValue - ((handleWidth / trackWidth) * (range.upperBound - range.lowerBound))
                            if steppedValue < maxAllowedValue {
                                lowerValue = min(max(minAllowedValue, steppedValue), maxAllowedValue)
                            }
                        }
                        .onEnded { _ in
                            onEditingChanged(false)
                        }
                )

            RoundedRectangle(cornerRadius: 100)
                .fill(.white)
                .frame(width: handleWidth, height: 24)
                .shadow(color: .black.opacity(0.12), radius: 4, y: 0.5)
                .shadow(color: .black.opacity(0.12), radius: 13, y: 6)
                .offset(x: upperPosition)
                .gesture(
                    DragGesture()
                        .onChanged { value in
                            onEditingChanged(true)
                            let percent = min(
                                max(
                                    0,
                                    value.location.x
                                        / (trackWidth - handleWidth)
                                ),
                                1
                            )
                            let newValue =
                                range.lowerBound + percent
                                * (range.upperBound - range.lowerBound)
                            let steppedValue =
                                (newValue / step).rounded() * step
                            let maxAllowedValue = range.upperBound
                            let minAllowedValue = lowerValue + ((handleWidth / trackWidth) * (range.upperBound - range.lowerBound))
                            if steppedValue > minAllowedValue {
                                upperValue = max(min(maxAllowedValue, steppedValue), minAllowedValue)
                            }
                        }
                        .onEnded { _ in
                            onEditingChanged(false)
                        }
                )
        }
    }
}

#Preview {
    @Previewable
    @State var lower = 0.2
    @Previewable
    @State var upper = 0.8

    VStack {
        DualSlider(
            lowerValue: $lower,
            upperValue: $upper,
            range: 0...1,
            step: 0.01
        )
        Text("Lower: \(lower)")
        Text("Upper: \(upper)")
    }
    .padding()
}

详解

此组件提供了类似于和 Slider 交互类似的范围滑动选择器，用户可在给定范围中选择一个更小的数据范围。
